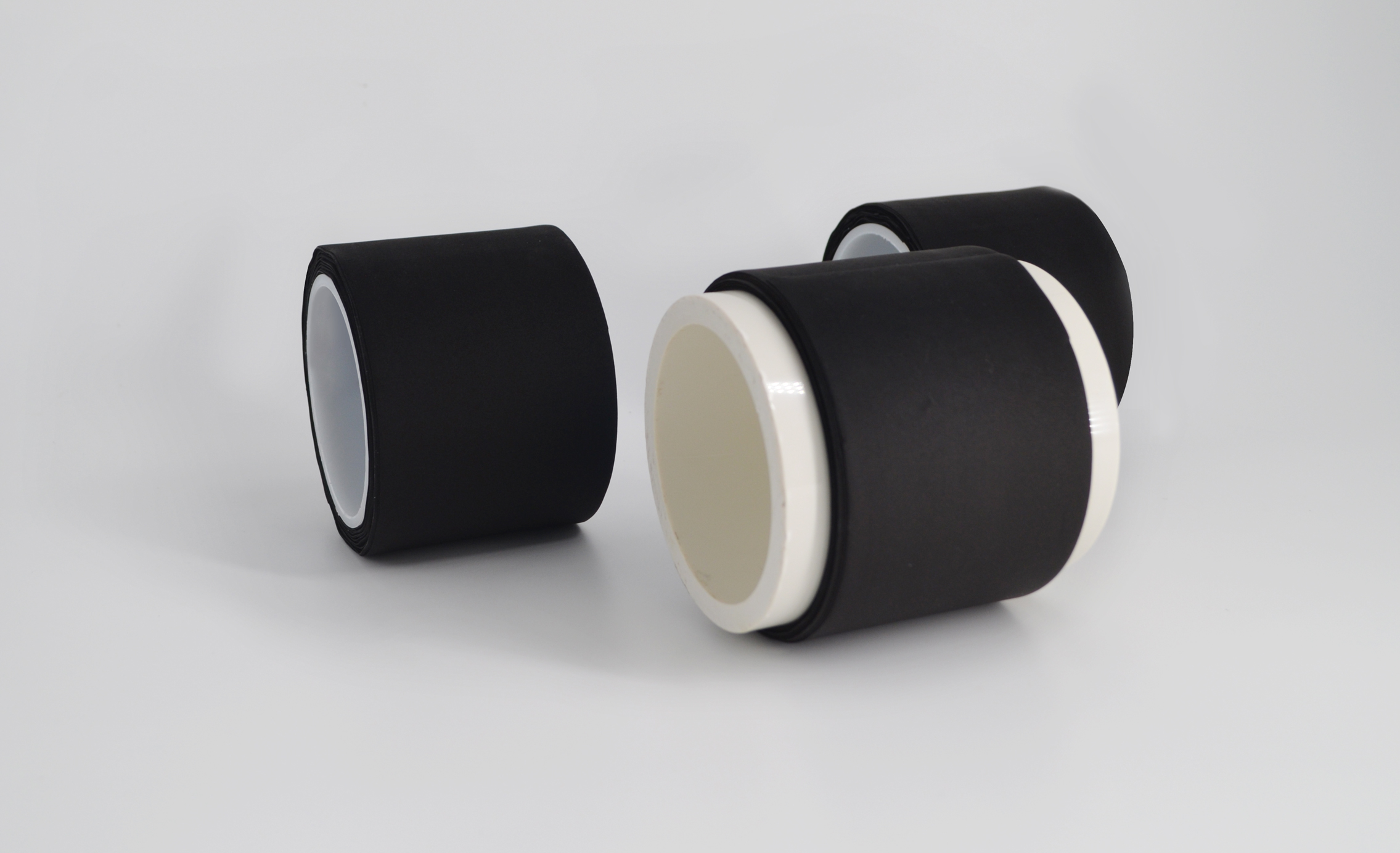

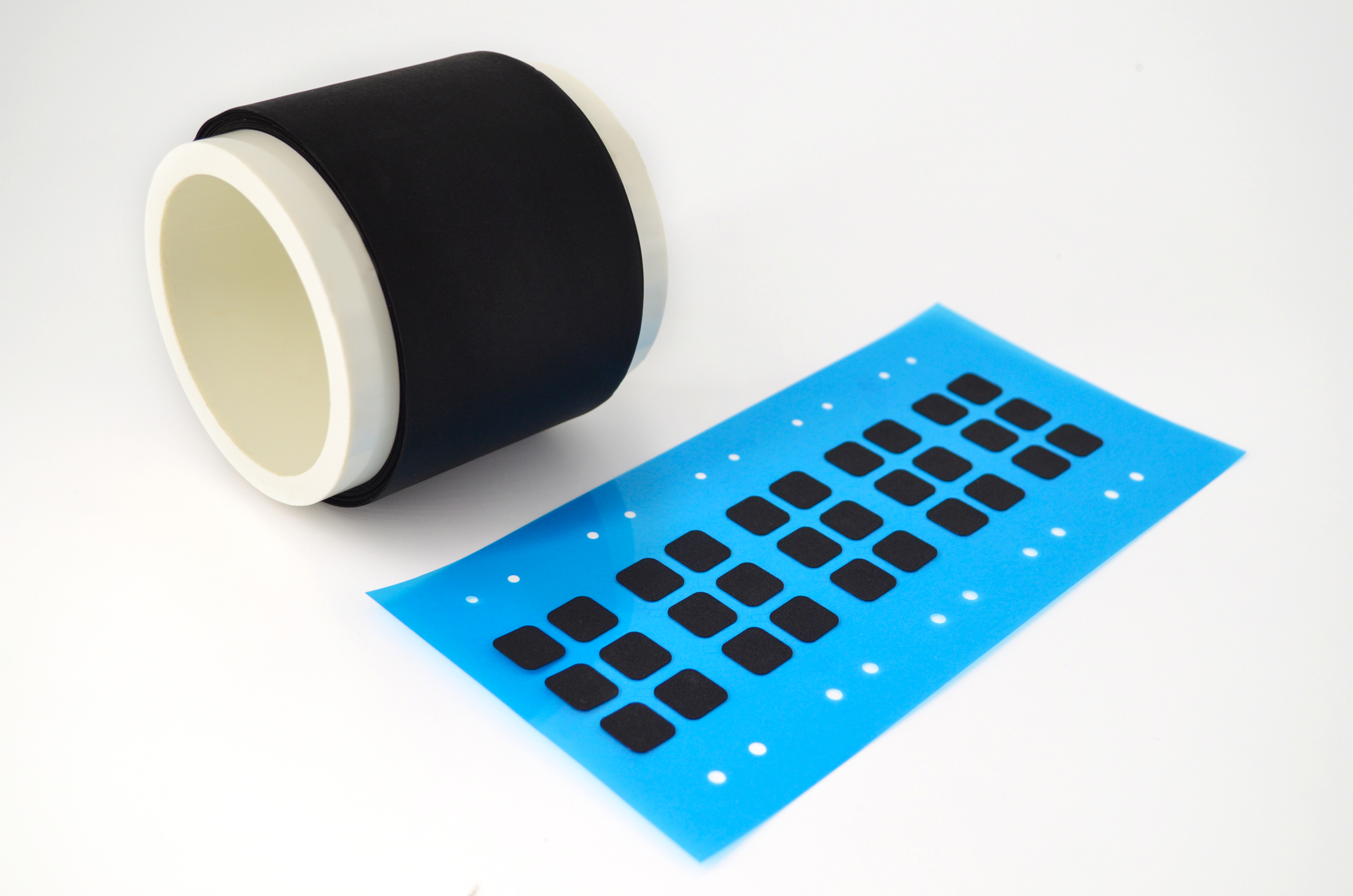

BF Series Venting Membrane

BF Series Venting Membrane

Pierceable for controlled bursting, efficiently balancing environmental pressure, while possessing excellent mechanical and chemical properties.

Advantages

FUTUREWAY® BF Series Venting Membrane can rapidly equalize pressure, allow controlled pressure relief, meet flame retardancy standards, and have exceptional mechanical performance and stability, providing reliable protection in various environments.

Pressure Balancing

Rapidly equalizes pressure gradients caused by environmental changes.

Burstable

Capable of bursting for pressure relief within a specified pressure range.

Flame Retardant

Meets UL 94 V-0 flame resistance requirements.

Exceptional Mechanical Performance

Strong resistance to tensile and impact forces.

Stable Performance

Excellent chemical compatibility and thermal stability.





BF Series Venting Membrane

Applications

  • Explosion proof valve
  • Battery PACK
  • Sensor electrode membrane

Series

  • Product
  • Colour
  • Parameter
  • Characteristic
  • Download
  • BF-08M
  • Black
  • Air flux: 300~1000ml/min/c㎡@7kPa; Water resistance pressure: 10~20kPa,60s@Φ10mm, IP68*; Burst pressure: Customizable
  • High-temperature resistant, flame retardant, burstable and chemical resistant
  • Download
  • BF-08ES
  • White
  • Air flux: 750ml/min/c㎡@7kPa; Water resistance pressure: >10kPa,60s@Φ10mm, IP68*; Thermal shrinkage: <3%
  • High-temperature resistant, flame retardant, breathable, acid and alkali resistant, and good toughness
  • Download
