Thermal Insulation Silicone Foams
Combines thermal insulation and cushioning, ensuring advanced protection for prismatic and pouch cell batteries.
当前位置： 首页 - Products - Silicone Materials - Cellular Silicone - Thermal Insulation Silicone Foams
Thermal Insulation Silicone Foams
Silicone Foams
Low Smoke Silicone Foams
Thermal Insulation Silicone Foams
Foams for Pouch Cells
Extruded Silicone Sponges
NVH Silicone Foams
Silicone Foams Low Smoke Silicone Foams Thermal Insulation Silicone Foams Foams for Pouch Cells Extruded Silicone Sponges NVH Silicone Foams
: Home > Products > Silicone Materials > Cellular Silicone > Thermal Insulation Silicone Foams
Thermal Insulation Silicone Foams

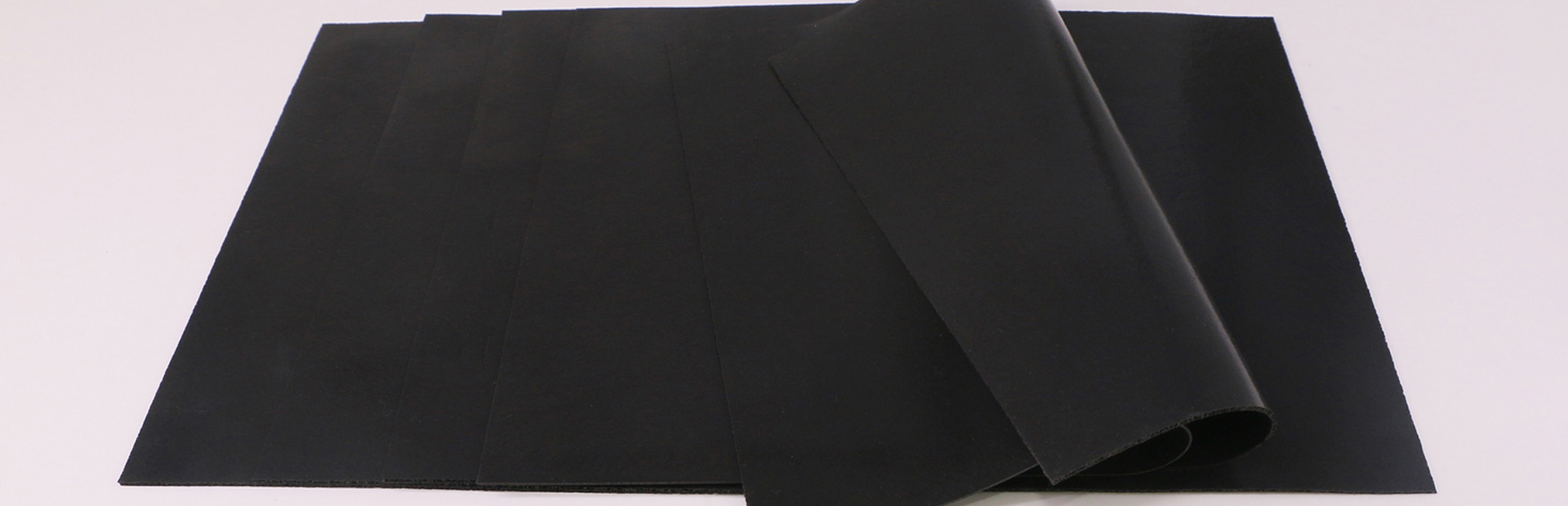

FUTUREWAY® Thermal Insulation Silicone Foam is a silicone material with ultra-high temperature thermal insulation function with a new silicone technology. At the low temperature (<200℃), Thermal Insulation Silicone Foam has excellent resilience, flexibility, compressibility and ultra-low density so that it has the functions of cushioning, thermal preservation and absorbing structural tolerances. At the ultra-high temperature (>600), it can inhibit heat diffusion,isolate high temperature to protect sensitive structures.

Contact Us Search More
Advantages

●     Exceptional thermal insulation
      Excellent thermal insulation performance under high temperature (>600℃) environment.

●     Flame Retardant
      Meets UL 94 V-0 flame resistance requirements.

●     Wide Compression Stress Range
      Adapts to structural and assembly tolerances, stable across varying compression stresses.

Applications

●     Buffer and thermal insulation pad between pouch cells

●     Module thermal insulation pad

●     The thermal pad between the PACK and the car body

Series
Product Color Parameters Characteristics Download
TIF-15 Black Density: 430kg/m³; Compression stress (25%): 157kPa; Thermal Insulation(600˚C @ 5 min): 140(2mmT) Integrates insulation and cushioning, ideal for thermal buffering in prismatic cell applications. Loading...
TIF-25 Black Density: 330kg/m³; Compression stress (25%): 67kPa; Thermal Insulation(600˚C @ 5 min): 140(2mmT) Integrates insulation and cushioning, ideal for thermal buffering in pouch cell applications Loading...
