BS Series Venting Membrane
Waterproof, dustproof, and breathable, balancing internal and external pressure differences in sealed enclosures.
当前位置： 首页 - Products - Advanced Films - ePTFE Venting Membrane - BS Series Venting Membrane
BS Series Venting Membrane
BS Series Venting Membrane
BSF Series Venting Membrane
BS Series Venting Membrane BSF Series Venting Membrane
: Home > Products > Advanced Films > ePTFE Venting Membrane > BS Series Venting Membrane

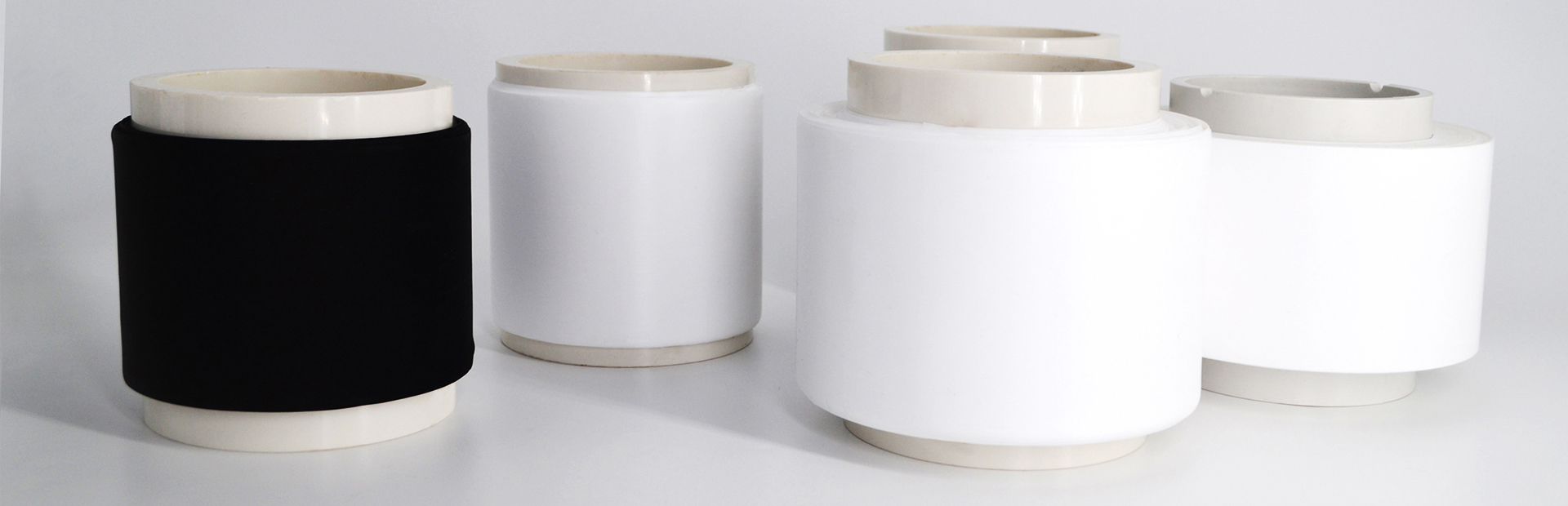

BS Series Venting Membrane

FUTUREWAY® BS Series Venting Membrane can rapidly adjust to environmental pressure changes, featuring high tensile strength and durability, as well as excellent weldability, ensuring the structure's robustness and stability.

Contact Us Search More
Advantages

●     Pressure Balancing
      Rapidly equalizes pressure gradients caused by environmental changes.

●     Stable Performance
      Excellent chemical compatibility and thermal stability.

●     Dust and Oil Proof
Effectively blocks dust particles, salt spray, and other contaminants.

Applications

●     Small battery packs

●     Radars, sensors, motors, etc

●     Automotive and motorcycle lighting systems

Series
Product Color Parameters Characteristics Download
BS-06 White Air flux: 450ml/min/c㎡@7kPa; Water resistance pressure: >35kPa,60s@Φ10mm, IP68* High air permeability, acid and alkali resistance and chemical inertness Loading...
BS-07AL Black Air flux: 900ml/min/c㎡@7kPa; Water resistance pressure: >40kPa,60s@Φ10mm, IP68*; MVTR: 2300g/m²/day High moisture transmission, acid and alkali resistance and chemical inertness Loading...
BS-08AL Black Air flux: 360ml/min/c㎡@7kPa; Water resistance pressure: >60kPa,60s@Φ10mm, IP68*; MVTR: 1600g/m²/day High moisture transmission, acid and alkali resistance and chemical inertness Loading...
BS-08R White Air flux: 200ml/min/c㎡@7kPa; Water resistance pressure: >80kPa,60s@Φ10mm, IP68* High water resistance, acid and alkali resistance and chemical inertness Loading...
