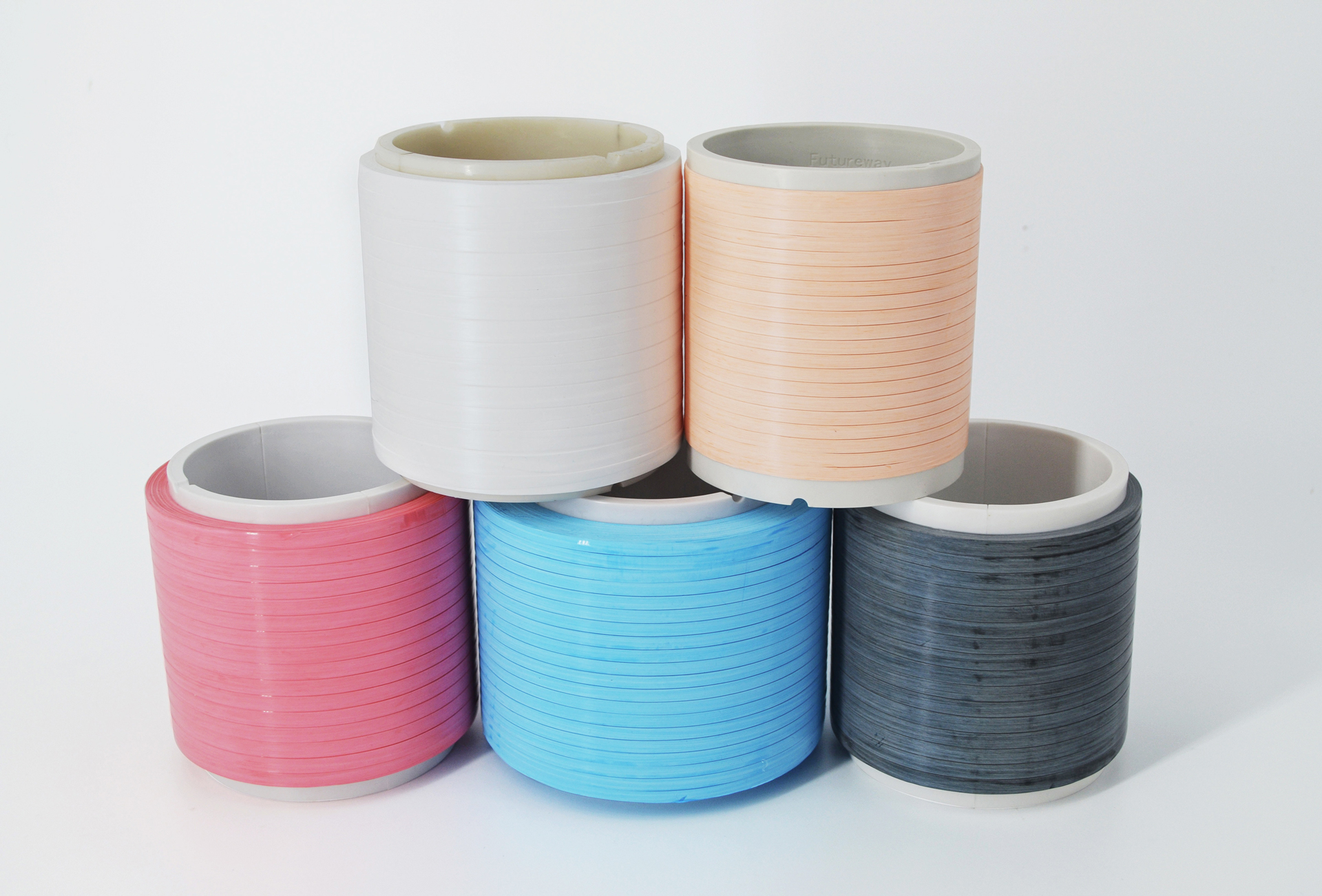

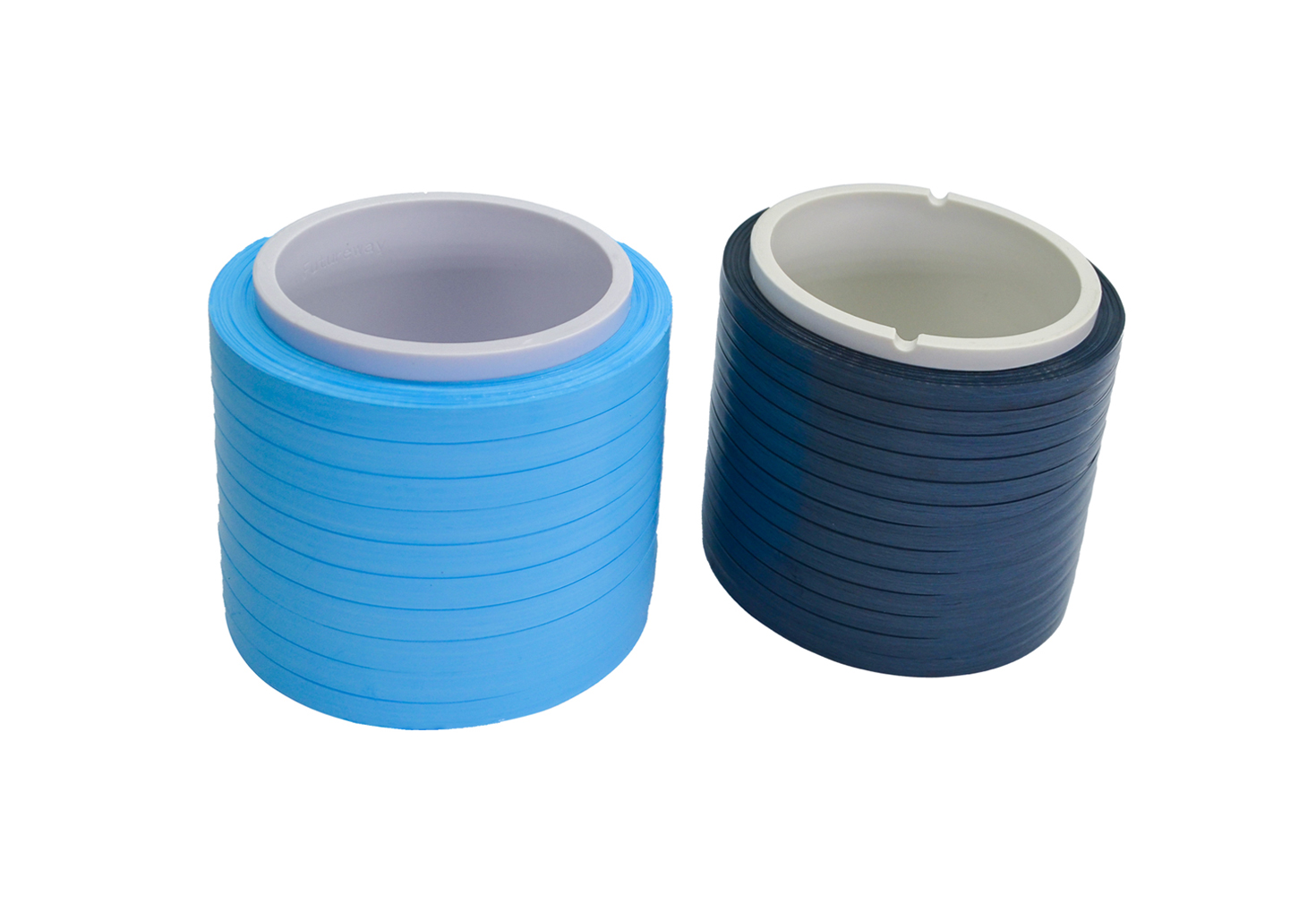

Full-density PTFE Film Wrapping Tape

Full-density PTFE Film Wrapping Tape

Excellent weatherability and superior electrical properties, providing protection for cable applications in harsh environments.

Advantages

FUTUREWAY® Full-Density PTFE Film Wrapping Tape(PTFE) combines fire resistance, high mechanical strength, excellent weatherability, superior electrical properties, high dielectric strength, and chemical corrosion resistance, making it suitable for a wide range of demanding application environments.

Fire Retardancy

Critical oxygen index over 95%, requiring almost pure oxygen for sustained combustion.

High Mechanical Strength

Possesses high tensile strength and tear resistance.

Exceptional Weatherability

PTFE can be used outdoors for extended periods, with excellent resistance to mold, moisture, and salt spray.

Superior Electrical Properties

Among solid insulators, it has the lowest Dk and Df values and the highest resistivity.

High Dielectric Strength

Effectively prevents electrical arc breakdown.

High Laser Contrast

UV marking minimum contrast >60%.

Chemical Corrosion Resistance

Almost stable against all chemical substances and solvents, whether in strong acids or strong bases.


Full-density PTFE Film Wrapping Tape

Applications

  • Aviation installation wire insulation
  • Aviation installation wire sheathing
  • Microwave coaxial cable
  • Low-loss phase-stable cable
  • High-temperature resistant wire

Series

  • Product
  • Colour
  • Parameter
  • Characteristic
  • Download
  • FD-PTFE
  • Nature
  • Vertical tensile strength: >6MPa; Elongation at break: >80%; Dielectric strength: >80kV/mm
  • Low dielectric loss, stable dimensions, uniform electrics and mechanics, heat-resistant, fireproof, corrosion-resistant, low friction, and high flexibility
  • Download
  • FA141
  • Nature;Custom
  • Vertical tensile strength: >10MPa; Elongation at break: >100%; Dielectric strength: >50kV/mm
  • Vibrant colors, stable dimensions, uniform electrics and mechanics, low friction, and high flexibility
  • Download
  • FA151
  • Custom
  • Vertical tensile strength: >10MPa; Elongation at break: >100%; Dielectric strength: >50kV/mm
  • Standard model, stable dimensions, uniform electrics and mechanics, low friction, and high flexibility.
  • Download
  • FA163
  • White
  • Vertical tensile strength: >10MPa; Elongation at break: >50%; UV laser marking contrast: >60%
  • High laser contrast, stable dimensions, uniform electrics and mechanics, low friction, and high flexibility
  • Download
  • FA166
  • Custom
  • Vertical tensile strength: >10MPa; Elongation at break: >50%; UV laser marking contrast: >60%
  • High laser contrast, stable dimensions, uniform electrics and mechanics, low friction, and high flexibility
  • Download
