Fireproof Composite Silicone Rubber

Fireproof Composite Silicone Rubber

Superior fire-resistant impact and insulation properties, creating a secure protective barrier.

Advantages

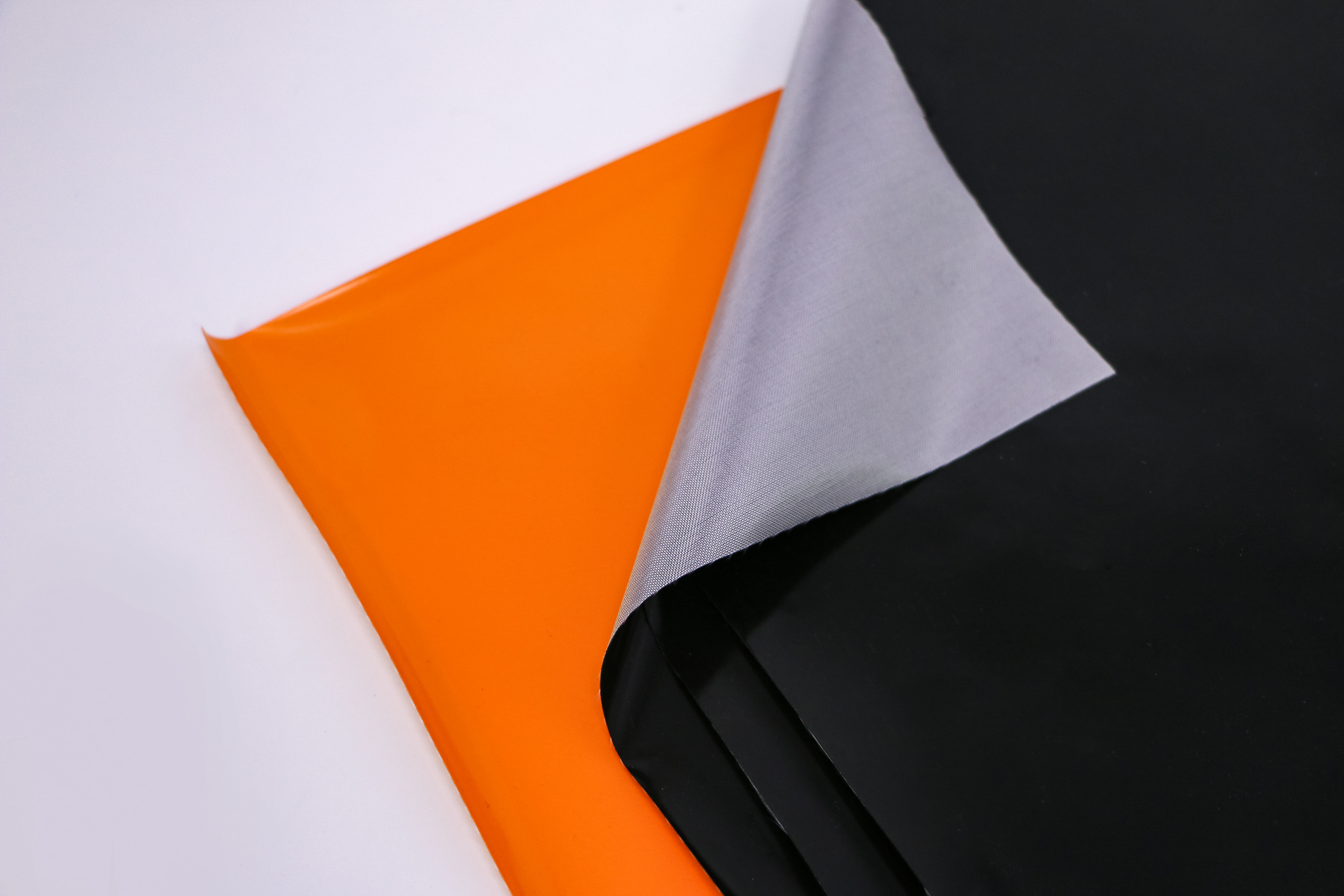

FUTUREWAY® Fireproof Composite Silicone Rubber is an ultra-high-strength silicone material compounded with special fire-resistant silicone rubber and fire-resistant fabric, designed to protect sensitive parts or structures in fire. The soft silicone rubber has a unique fire resistance, which can resist flame ablation up to 1000℃, while reducing the spread of flame to other areas.

Flame Retardant

Meets UL 94 V-0 flame resistance requirements.

Fire Impact Resistance

Withstands high-temperature flame erosion and metal particle impact above 1000°C.

High-Temperature Insulation

Maintains electrical insulation at ultra-high temperatures (>1000°C).

High Mechanical Strength

Possesses high tensile strength and tear resistance.


Fireproof Composite Silicone Rubber

Applications

  • Fireproof insulation pads for side panels and end panels of EV battery pack modules fireproof insulation film for battery pack circuits fireproof PACK cover panels 
  • Cargo covers for aerospace
  • Protective covering for railcar brake lines
  • Fire barriers and smoke seals between railcar passenger compartments

Series

  • Product
  • Colour
  • Parameter
  • Characteristic
  • Download
  • TIX-10
  • Black;White;Orange
  • Electrical resistance at elevated temperature: 5.2×10^7Ω; Dielectric strength: 27kV/mm
  • Insulative, heat resistant, fireproof, combustion-friendly, and highly flexible
  • Download
  • TIX-10C
  • Black
  • Tensile strength: 5MPa; Fire resistance@1300℃ & 5min: Pass
  • Tubular structure, fire-resistant, thermally insulating, environmentally aging resistant, and flame retardant
  • Download
  • TIX-30
  • Grey
  • Electrical resistance at elevated temperature: : 1.2×10^7Ω; Fire resistance@1300℃ & 10min: Pass
  • Fireproof, insulating, conformable, high-temperature resistant, and high mechanical strength
  • Download
