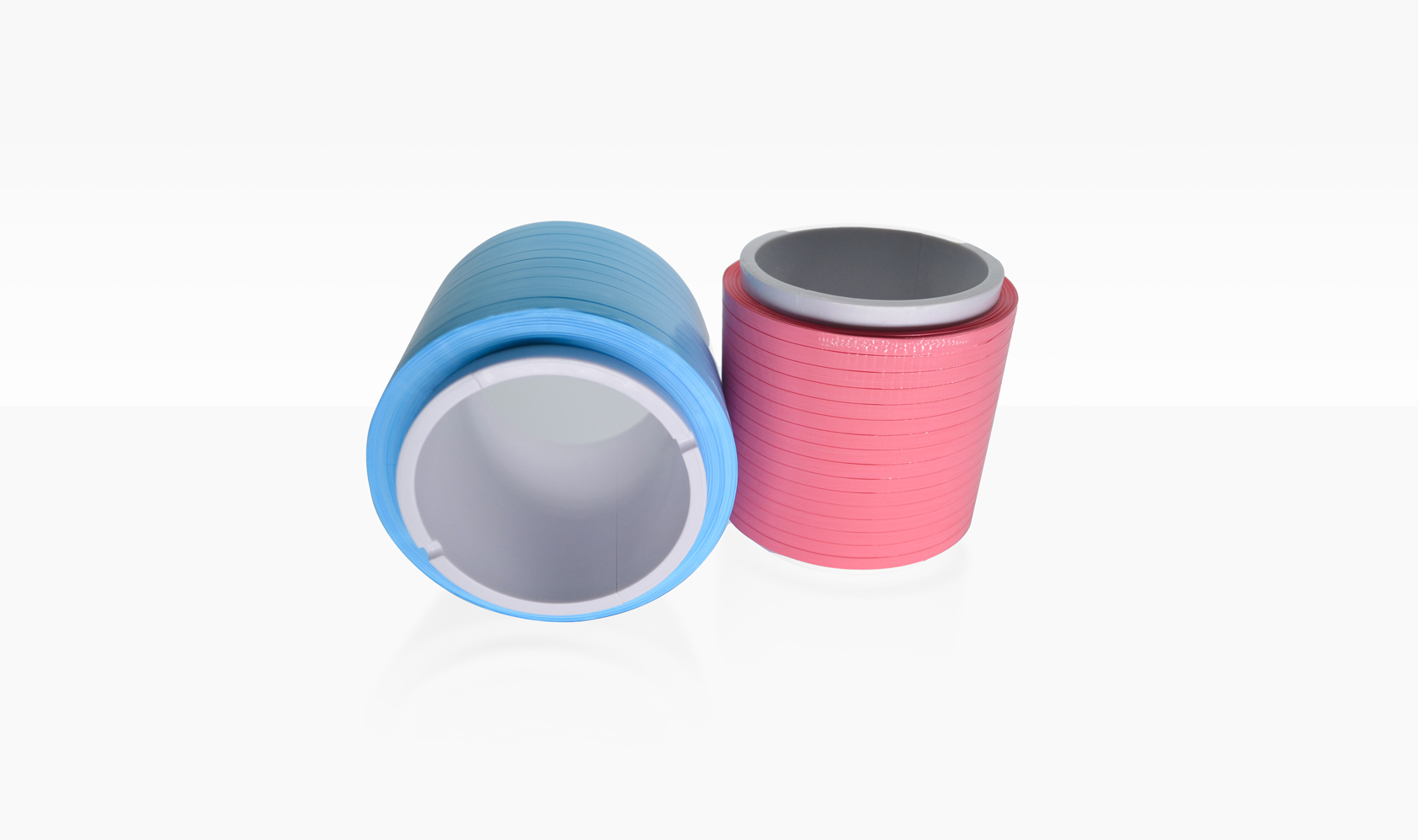

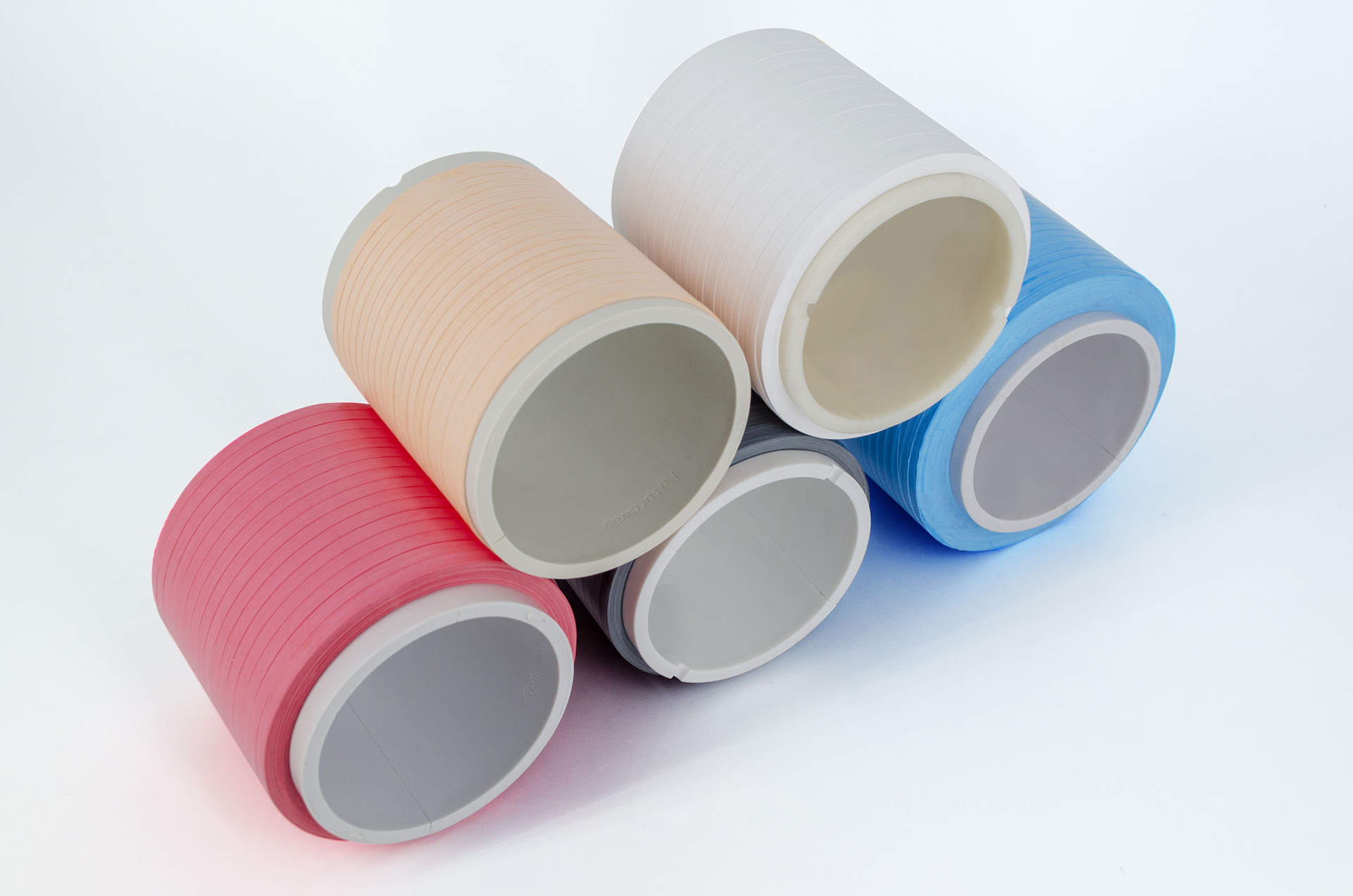

Low-density PTFE Film Wrapping Tape

Low-density PTFE Film Wrapping Tape

Outstanding electrical properties, empowering high-frequency communication cable insulation applications.

Advantages

FUTUREWAY® Low-Density Polytetrafluoroethylene (PTFE) Cable Wrapping Tape combines excellent electrical performance, fire retardancy, low friction, high flexibility, and superior weather and chemical stability, providing comprehensive and efficient protection for various types of wires and cables.

Exceptional Electrical Performance

Low dielectric constant, low dielectric loss, low signal attenuation.

Fire Retardancy

Critical oxygen index over 95%, requiring almost pure oxygen for sustained combustion.

Low Coefficient of Friction and High Flexibility

Smooth surface, abrasion-resistant, and bend-resistant.

Exceptional Weatherability

PTFE can be used outdoors for extended periods, with excellent resistance to mold, moisture, and salt spray.

Chemical Corrosion Resistance

Almost stable against all chemical substances and solvents, whether in strong acids or strong bases.


Low-density PTFE Film Wrapping Tape

Applications

  • Microwave coaxial cable
  • High-speed data cable
  • Twisted pair cable
  • Low-loss phase-stable cable

Series

  • Product
  • Colour
  • Parameter
  • Characteristic
  • Download
  • LD-PTFE
  • Nature
  • Vertical tensile strength: 10~20MPa; Elongation at break: >100%; Dielectric constant: 1.3~1.4
  • Consistent dimensions, low dielectric constant, corrosion and heat resistant, fireproof
  • Download
  • LD-PTFE-LS
  • Custom
  • Vertical tensile strength: 15~30MPa; Elongation at break: >100%; Dielectric constant: 1.3~1.4
  • Low shrinkage, consistent dimensions, low dielectric constant, corrosion and heat resistant, fireproof
  • Download
  • LD-PTFE-CR
  • Nature
  • Vertical tensile strength: >20MPa; Elongation at break: >100%; Dielectric constant: 1.3~1.4
  • High strength compression resistant, consistent dimensions, low dielectric constant, corrosion and heat resistant, fireproof
  • Download
Obtain products and solutions
